Overview

These antennas have been designed by Bob Archer from Torrance, CA utilizing concepts common to military aircraft and space vehicles. The antenna performance is superior to most in use today in private aircraft. The only requirement for max. Performance is that the antennas must be installed in accordance with the installation instructions. These antennas are designed to be installed inside fiberglass or other non-conductive wing tips or tail caps of metal or other conductive material aircraft.

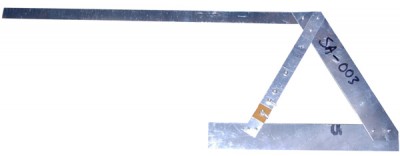

Model 3:
Wing tip VOR antenna of same general design as the Model 1 but of a narrower design to fit Mooney tips with internal dimensions of 8″ x 24″. VSWR less than 2.0:1 over the frequency band of 108 to 118 Mhz.
