Overview

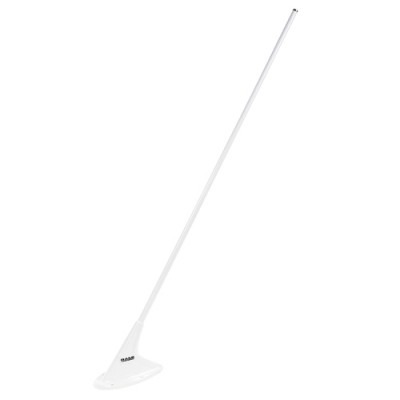

The AV-10 is designed for high-performance aircraft applications. It exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base. The antenna essentially matches the styling of the communication antennas currently used on most singles and light twins. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lb @ 250 mph.
Documents
Download the installation instructions in PDF format.
Specifications
- Application: Airborne Communications
- Frequency: 118 to 137 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.0 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: Type “BNC” Female
- Max Weight: 8 oz
- Max Height: 20-1/4″
- RF Power Capacity: 25 Watts

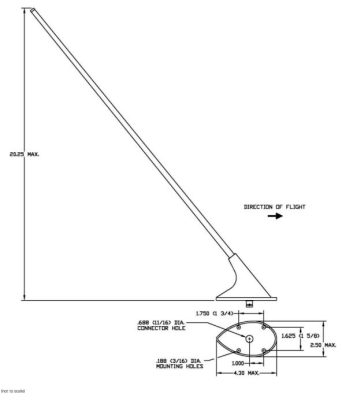

Drawing
| Select Bundle: | AV-10 Unit Only, AV-10 + AV-801 WAAS GPS Antenna |
|---|
